Review and merge

You review a work item on its page in the dashboard. From there you approve it and merge its pull requests, or send the agent back with comments. To record a named pass or fail from CI or a terminal instead, see Record a check.

​

The item page is the review

The page has four tabs. A sidebar beside them shows the review, the latest build, the pull requests, the sessions, time and cost, and the issue.

• Activity is the item’s history, oldest first. It starts with the issue’s description, the ask you review against. A build that did not finish cleanly says why on its line. Each review you sent is one card, and the agent’s answer to it is its own card. Each step an agent reports with outerlayer emit step is its own entry, such as Plan started by build-01. A running build’s newest step is highlighted and shows how long ago it started. Once a build ends, its steps fold into one entry, such as 6 steps by build-01 · last: Open pull request, and selecting it lists them. A new step reaches an open page within a few seconds. While a build works inside a subagent, the subagent shows as a line under the build’s newest step. The line gives the subagent’s name, how long it has run, when it last acted, and its last tool, such as Implement the change is working · running 54m · last acted 20s ago · last tool: Bash. The name links to the subagent’s session. The line shows the tool’s name only, never its input or output. It refreshes about once a minute. A subagent that stopped reporting while its build still runs reads stopped reporting with how long ago it last reported. OuterLayer does not decide that a build is stalled. You decide from when it last acted. A subagent that ends leaves Activity, and its session page keeps its history. Activity is read-only. A box at the end sums up what is left before merge (see below).
• Criteria is where you review. Every acceptance criterion of the item is a row, as recorded with outerlayer emit criteria. Each row shows the criterion, whether its declared proof is attached, and its whole conversation with the agent. You write notes here. See The Criteria tab.
• Findings lists problems agents hit in the factory while working on the item. They do not affect whether the work passes. See Findings.

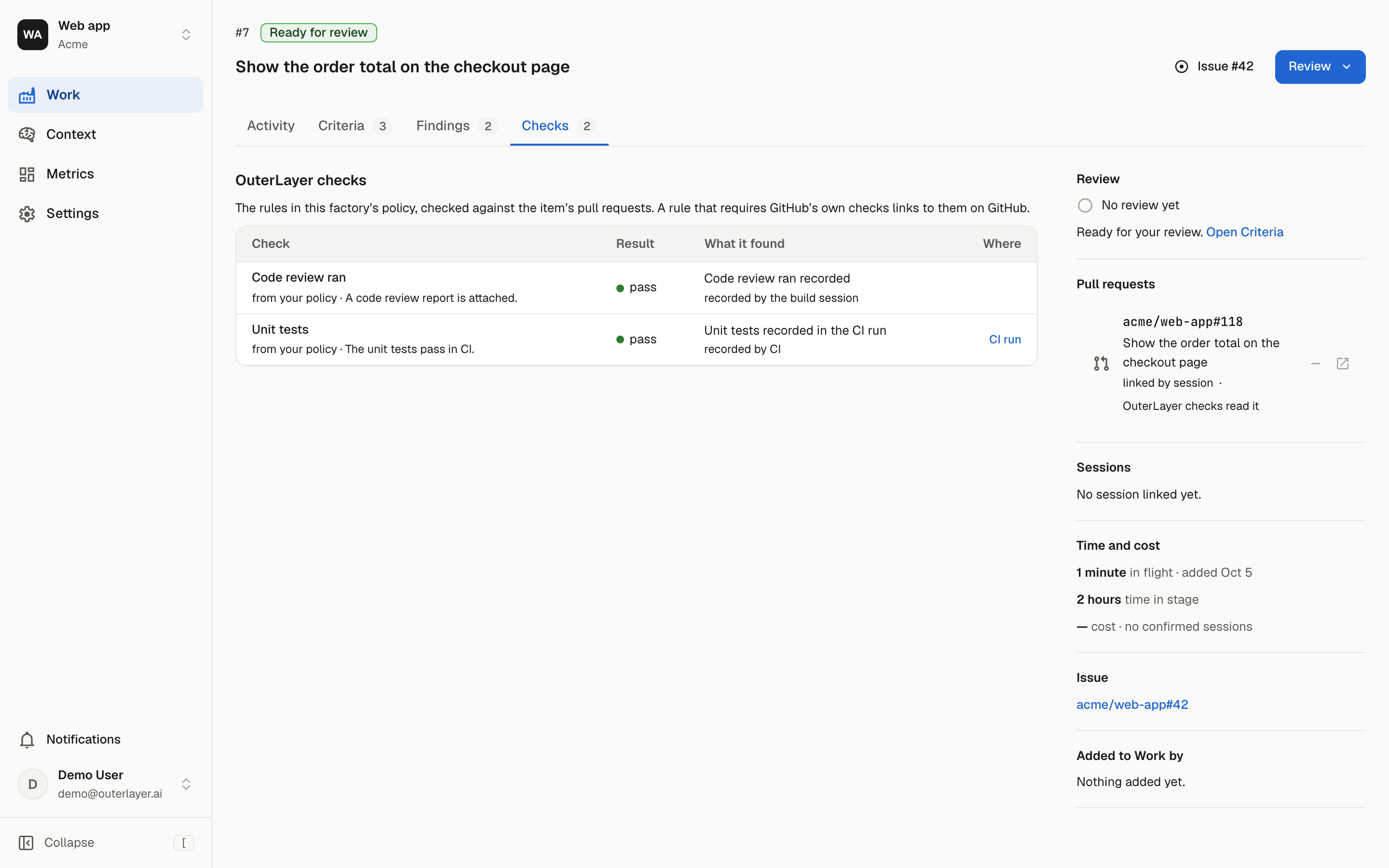

• Checks holds what the OuterLayer checks decided, across every pull request on the item. GitHub’s own check runs stay on GitHub.

The first time you look, a row declaring a screenshot or a video opens with that artifact in place. After a verdict, rows with nothing new show Unchanged since you looked. For an item a runner built, the runner records the acceptance-criteria row itself. Its judge reads each recorded criterion and the test that cites it, and the row links the judge’s report. See A judge on your host. An item built in a local session has no such row. A check that carries check items lists its failing ones under its row, each with its reason. When a pull request on the item changes a file under .outerlayer/, the header carries a chip that says how many repositories the change reaches. A callout above the tabs lists the edited files and links to the setup below.

​

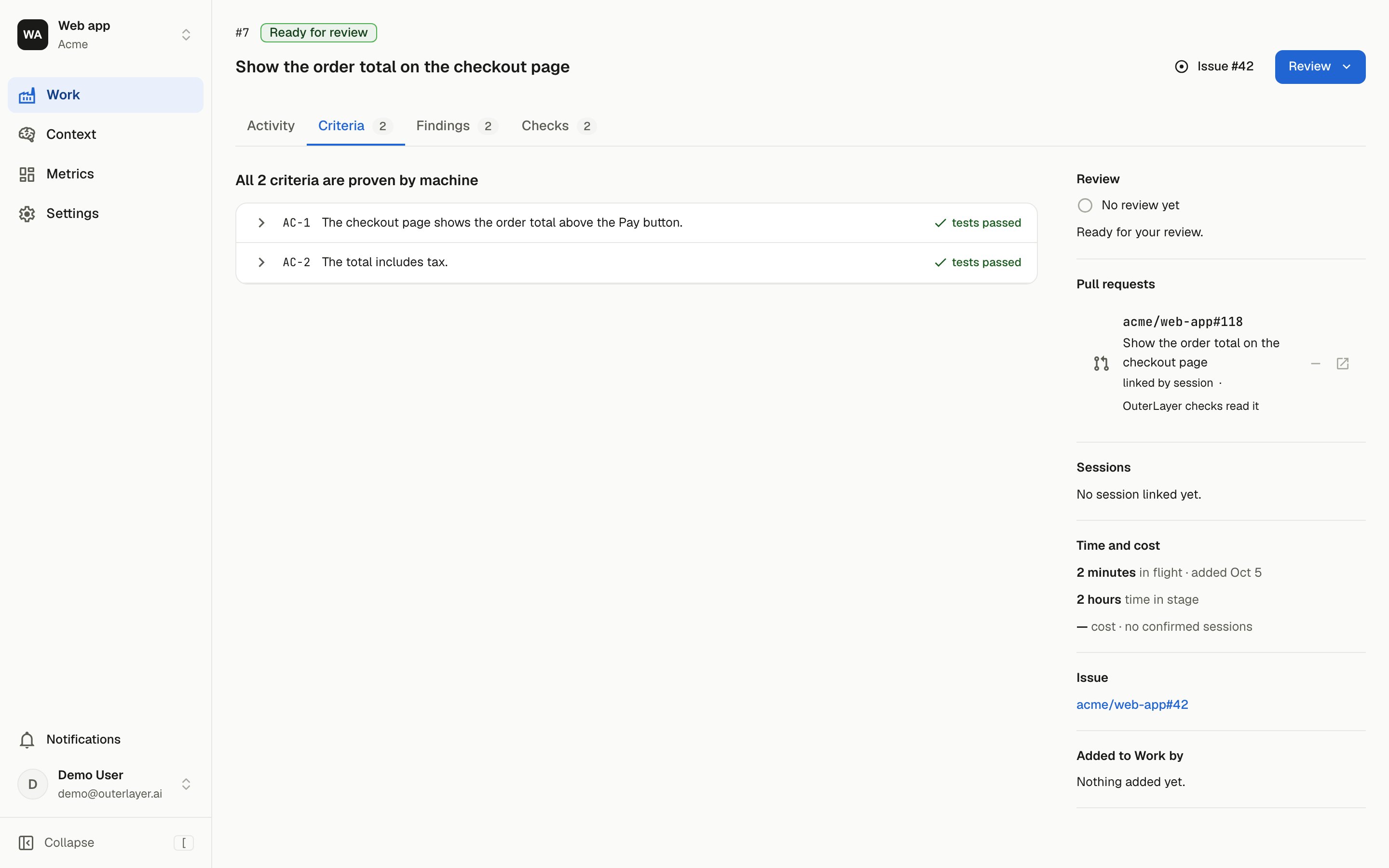

The Criteria tab

The tab reads only criteria recorded with outerlayer emit criteria, never the issue. Above the rows, a Proofs strip shows every screenshot and video on the item as a thumbnail, labelled with the criterion it proves. Thumbnails follow the order the criteria are listed in. A video’s thumbnail carries a play mark. Reports, logs and other files stay on their rows. A criterion that declares a screenshot or a video and has none attached gets a slot after the thumbnails. It names the criterion and reads Declares a screenshot, not attached yet or Declares a video, not attached yet. An item with no screenshot or video attached or declared shows no strip. Select a thumbnail to open the full-screen viewer on that proof, or Step through all to start on the first. The viewer steps through every proof in the strip, across criteria, and shows the criterion’s id and the criterion’s sentence under each one. A row’s own viewer still steps only through that row’s artifacts. A row opens to show every round of its conversation in order: your notes, and the agent’s replies beside the proof. A row can show one state next to its title:

• Waiting for an agent: you sent a note and no agent has picked it up.
• Agent working: an agent holds the item to answer your review.
• New reply: the agent answered after your latest review. The row opens by itself.

Sending the next review, or approving, clears New reply. To go on with a conversation, add a note to the next review. The tab’s label shows how many rows have a new reply, for example Criteria 3 with a badge reading 2. When the issue holds no criteria, the build drafts the current list from the issue’s description. Then a line above the rows reads The build drafted these criteria from the issue’s description. Replace them with outerlayer emit criteria. To replace them, record your own list with outerlayer emit criteria and your own login. The line goes away, and the tab says the list was replaced by you. An item with no recorded list shows No acceptance criteria are recorded for this item. With the default criteria.missing: warn, a line under it says the pull request is flagged until a list is recorded. A criterion missing its declared proof flags the pull request until the proof is attached. See Recorded criteria in the verdict. A check item that names a criterion shows on that criterion’s row. The row says what the check found, such as Acceptance criteria: not satisfied, with the reason, and lists the tests the check item cites. A criterion that a check found not satisfied reads not satisfied in its row’s result. The runner’s report is linked at the top of the tab as Host’s criteria report. A report bound with --for acceptance-criteria by a build or by CI is linked as Criteria report. When no check item names a criterion, its row lists the tests that report says cite it. GitHub’s reason a pull request cannot merge yet, such as a draft or conflicts, also appears on this tab.

​

The box at the end of Activity

The box has four rows, top to bottom:

1. Review: whether a person approved the item or asked for changes, and whose turn it is. It reads Waiting on an agent since a time, An agent is answering your review while an agent holds the item, or N new replies with a link to each row.
2. OuterLayer checks: how many passed, and each failing one by name.
3. GitHub: each pull request’s standing on GitHub.
4. Merge: the Merge pull request button.

While the item waits on you, a banner above the rows reads Ready for your review or Back for your review. The banner has an Open Criteria button.

​

Statuses

One status says whose turn it is, on the page and the Work page:

• Not started: nothing has been linked to the item or asked of it yet.
• Queued: a build, or your review notes, wait for a runner to take them.
• With agent: an agent is working on it.
• Ready for review: the agent is done and a pull request is open. It is your turn even while checks run or fail. You can send the work back now. Approve waits for the checks and every proof.
• Approved: a person approved it. It is ready to merge, or merging. It stays Approved for up to ten minutes after its pull request merges, while the issue the pull request closes catches up. The line under the title then reads Merged, waiting for the issue to close.
• Done: its pull request merged with no blocking verdict. The line under the title reads Shipped.
• Done, unverified: a pull request merged while its verdict still blocked, so some checks were never proven. The mark is the Done disc with an orange dot, and the line under the title reads Shipped · N checks unproven when checks were left unproven, or Shipped when a person’s “no” was merged over. It stays in the Closed list.
• Closed, not shipped: its issue closed with nothing merged. If a pull request is still open, the line reads Closed <date> · pull request still open.
• Needs attention: the last run stopped, or work started and no pull request is open. A stopped run shows, on Activity, why it stopped and how to take it over. A pull request that merged more than ten minutes ago with its issue still open also lands here, reading Merged, but its issue is still open: close the issue, or link the pull request with “Closes #N” next time.

On the Work page, the status is an icon before the item’s title; hover it for the word. The line under the title says why. It names who is working on it or who asked for changes. It can also say that the agent answered your review, how many criteria are missing their proof, or why a run stopped. At the right edge, a pull request icon shows the state of the item’s most relevant pull request. The icon shows open if any is open, else merged, else closed. A number beside it counts them all. A checks icon follows it, except on a finished row (Done, Done unverified or Closed, not shipped), where nothing is left to fix.

​

The Work list

The Work page lists the factory’s items, newest activity first. A search box above the list holds the whole filter as text, such as is:open status:stuck sort:cost. The filter is in the page address as ?q=, so you can bookmark a filtered view or send it to someone. The list shows 25 items per page, with a pager under it that reads, for example, 1–25 of 60. The page you are on is in the address as ?page=. Changing the search, a menu, the sort or the tab returns you to the first page. A row whose pull request changes a file under .outerlayer/ carries a caption. It reads Rules for 4 repositories when the pull request is in a control plane that governs three others, and Changes this repository’s rules otherwise. Open filters in your browser. Closed is read from the database one page at a time. Closed shows its exact total. A search on Closed covers every closed item, however many have closed. On Closed, status: matches only shipped, and builder: and by: match nothing, because a closed item holds no live lease. sort:cost sorts Closed too, highest stored cost first, with items whose cost is unknown last. A closed item’s cost is stored the next time the item is recomputed after it closes. It is refreshed for a week after that. For a short while, the order can lag the cost a row shows. Write qualifiers and plain words in the box:

• A comma means OR within one qualifier: status:stuck,back.
• Different qualifiers combine with AND.
• A comma in label: also means OR: label:bug,ui matches an item with bug, ui or both. Two label: qualifiers mean AND: label:bug label:ui matches only an item with both labels.
• Any other word matches the item’s title, its number (239 or #239), its tracker key or one of its labels. Every word must match.
• An unknown qualifier is treated as a plain word.
• builder: and by: read only the live lease. An item nobody is building matches neither.
• by:me compares your member name with the name the lease records. Two members with the same name see each other’s items under by:me.

You do not have to type qualifiers. The list’s header has menus for Status, Repository, Label, Builder, Asked by and Sort. The Label menu lists the labels on the factory’s items. Choosing an option adds it to the box, and choosing it again removes it. Each option shows how many items it would match with the rest of the filter kept. The Repository menu appears only when the factory’s items come from more than one repository. Each row shows up to three of the item’s labels, and +N for the rest. Select a label on a row to add it to the box as label:<name>. The Open and Closed tabs count the items that match the filter in each state. Closed shows its exact count. The Filters menu beside the box replaces the box’s text with one of five saved filters: When the box holds anything beyond is:, a line under it reads N results · Clear current filters, and the box has a clear button. Clearing leaves only the is: qualifier. A filter that matches nothing shows No work matches these filters with a Clear filters button.

​

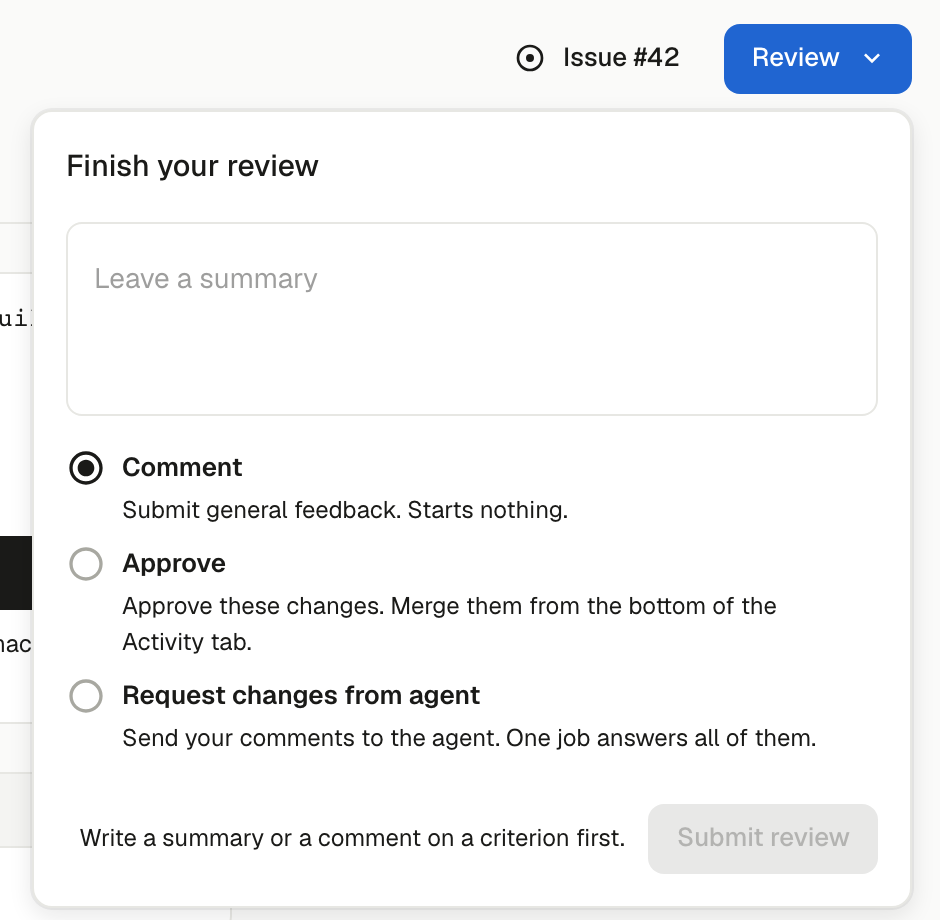

Submit a review

Review sits in the page header if you hold the Record a review permission. It is grayed out until the item is Ready for review; hover it to see why. It stays grayed out until the item has been evaluated and every session link has arrived. Once the item is Approved, the button is gone. While the checks have not passed or a declared proof is missing, Comment and Request changes from agent work. Approve is disabled and says what it waits for. A review takes a summary and one of three outcomes:

• Comment stores your comments and the summary as plain comments. It starts nothing.
• Approve approves the item. It does not merge anything (below).
• Request changes from agent sends your comments and the summary to the agent. It starts one agent job.

Notes you write on criteria rows are pending: they stay in your browser until you submit, and leaving the page discards them. They go with whichever outcome you choose.

​

Approve and merge

Approving and merging are two steps, the way they are on a GitHub pull request. Approve records a single pass on the item’s general thread, with your summary as its text. GitHub is not asked anything. The item then reads Approved. The approval is refused before anything is written if:

• a push changed a pull request after you opened the page. Reload and review again.
• the item cannot be approved at that moment: checks are not green, a declared proof is missing, or there is a newer failing verdict. The page says what approving needs.

Merge pull request sits at the bottom of the Activity tab. It is disabled until the item is approved. With more than one open pull request, it reads Merge pull requests. A new push voids the approval and disables it again. If a push changed a pull request after you opened the page, the merge is refused before GitHub is asked; reload first. Once it is enabled, it asks GitHub to merge each open pull request:

• Auto-merge. When the repository allows auto-merge, GitHub is asked to merge once the pull request’s requirements are met.
• Direct merge. When GitHub refuses auto-merge on a pull request it reports mergeable, the page sends one direct merge instead.
• A refusal. When GitHub refuses both, the page shows GitHub’s message as it gave it. The approval stays recorded, and you can press Merge pull request again later.

GitHub’s answer for each pull request shows under the button as soon as GitHub gives it. Once GitHub has accepted every pull request, the button reads Merged, or Merge requested while one waits on auto-merge. It stays disabled while you stay on the page. Only people with the Merge a pull request permission can merge. The owner and admin roles hold it, and a custom role can grant it. For other reviewers the button stays disabled after approval, and someone with the permission merges.

​

Require a person’s review of rules changes

The files under .outerlayer/ are the rules: agent instructions, skills, policy and validators. They decide what every agent in a repository is told and what the checks accept. In a control plane they decide the same for every repository it governs. A change to them needs a person’s review. OuterLayer marks such a pull request on the item page and in the Work list, but the mark does not block a merge. Your git host enforces the review. Set it up once per repository:

1. Add a CODEOWNERS file at .github/CODEOWNERS that names the people or team who may approve rules changes. Own the file itself too, so a pull request cannot drop the rule without that review:
   /.outerlayer/ @your-org/your-team
   /.github/CODEOWNERS @your-org/your-team

2. Create a branch ruleset (or branch protection rule) for your default branch and turn on Require review from Code Owners.

Who may approve is the git host’s decision. OuterLayer adds no approval rule of its own.

​

Request changes from agent

You write notes on the Criteria tab. Add a note on each row that needs one, choose Review, then Request changes from agent. The notes are stored with one fail on the general thread that lists them, all together or not at all. The fail starts one agent job, however many notes you sent. With no notes, the summary alone is the fail. If the send fails, your notes stay on the page; try again. Each note you send waits on the agent. The agent answers in the criterion’s thread, under your note. A question gets an answer and no code change. A requested change gets a fix and new proof when the criterion declares one. A note the agent cannot act on gets one question back. On Activity, your review is one card with your summary and one block per note. The agent’s answer appears as its own card on the Activity tab, after your review. It holds the agent’s summary and one block per criterion it answered. An older answer folds to its header once none of its replies is new, and every card folds after approval. Activity is read-only: every criterion id and every time on it links to that row on the Criteria tab, where you write the next note.

​

When a pull request conflicts with its base branch

A runner built a pull request. Later, another pull request merges into the same base branch and changes the same lines. GitHub then reports that the first pull request no longer merges cleanly. OuterLayer records the conflict when the base branch moves. The Activity tab shows Conflicts with main, with the time OuterLayer found it. The conflict ends when anyone pushes to the pull request’s branch. A runner resolves the conflict. You do not ask for it:

1. The runner merges the base branch into the pull request’s branch.
2. The runner runs the repository’s pre-push checks.
3. The runner pushes. The merge commit names the base commit it merged.

The runner never rebases and never force-pushes. It tries once for each head of the pull request. A run that cannot resolve the conflict pushes nothing, so no second run starts until the head moves. This applies to pull requests built by a runner. A pull request built in your own session with outerlayer work build --local shows its conflict but starts no run. A pull request that is behind its base but still merges cleanly starts no run either. To turn this off, clear Resolve merge conflicts automatically on the factory’s General settings page. You need permission to update the factory’s settings. With the setting off, conflicts still show on Work, and no run starts for one. You can still ask for a resolution: fail the general thread with Request changes from agent. When the runner cannot resolve a conflict, it hands the item to you. It aborts the merge, pushes nothing, and posts on the general thread. The comment names the conflicting files, the base commits behind them, and the decision it needs from you. The item then waits on you. Fail the general thread with your answer. That starts a new run, and your answer is its instruction.

​

Rerun a Stuck item

An item reads Stuck when its last build or amend run failed or timed out. The Activity tab says why it stopped. Once the cause is fixed, select Rerun on a host beside Last build on the item page. The control starts the job the item needs. It starts a build when the item has no open pull request. It starts an amend when the item has one and a review waits on an agent. The item leaves Stuck as soon as the request is recorded, and Activity names who asked a runner to rerun. Rerun on a host does nothing for an open pull request with no review waiting on an agent. The page does not offer it there. To ask for something different on an item with an open pull request, use Request changes from agent. The Review button is open on a Stuck item with an open pull request for that reason.

​

Threads and waiting on

A work item has one general thread, and one criterion thread for each acceptance criterion that has proof or a comment. A comment has a body and, optionally, one action:

• pass or fail — a person’s verdict on the whole item, on the general thread only. A pass or fail that names a criterion is refused with verdict_on_criterion, from the page, the API and the CLI alike, and nothing is stored.
• request — a note you sent with Request changes from agent, on a criterion thread. It leaves that thread waiting on an agent. Only a sent review writes one; posting a request as a comment is refused with request_needs_review_send.
• attach — an agent makes an artifact the criterion’s current proof.
• ready — an agent hands a thread back to a person after answering it: the general thread after a fail, or a criterion thread after a sent note.

Each thread shows who it is waiting on. Only a person’s fail on the general thread hands the item to an agent: a person’s plain comment, on any thread, starts no agent. An agent’s attach or ready hands the thread back. The item then shows Ready for review, and Criteria says how many criteria changed since you looked. Once its checks pass and every declared proof is attached, its Work page row reads Agent answered your review. A pass covers the head commit of each pull request at that moment. A new push to any of them voids it: the item leaves Approved and returns to Ready for review. A fail never goes stale. It holds every pull request until a person records a pass. From a recorded session, outerlayer work comment --item <n> [--criterion <id>] --body <text> [--artifact <id>] [--pass|--fail|--attach|--ready] posts a comment, and outerlayer work threads --item <n> reads them back. --pass and --fail need the Record a review permission, which only a person holds. Record them from the item page, or with your own outerlayer login outside an agent session. An agent session or a factory API key is refused with verdict_needs_person. See outerlayer work comment for every flag and refusal. A person’s review is not one of OuterLayer’s checks. The pull request’s evidence comment shows it in its own block above the checks. The item’s checks icon on the Work list speaks only for OuterLayer’s checks. The OuterLayer evidence check on GitHub reads the checks and the review side by side. Its title says what decided it, for example “Changes requested by Riley Chen · OuterLayer checks pass” or “OuterLayer checks pass · review pending in OuterLayer”. Under merge_gate: on-flag, a person’s “no” fails the check and so blocks a GitHub merge, and a missing review does not. review: optional changes the title to “OuterLayer checks pass · review not required” and never makes a missing review matter. See The OuterLayer evidence check for every title. A pull request merged while a person’s latest verdict was a request for changes reads Done, unverified on the Work list.
